Adjustable Angle Fountain Nozzles: The Versatile Workhorse of Water Features

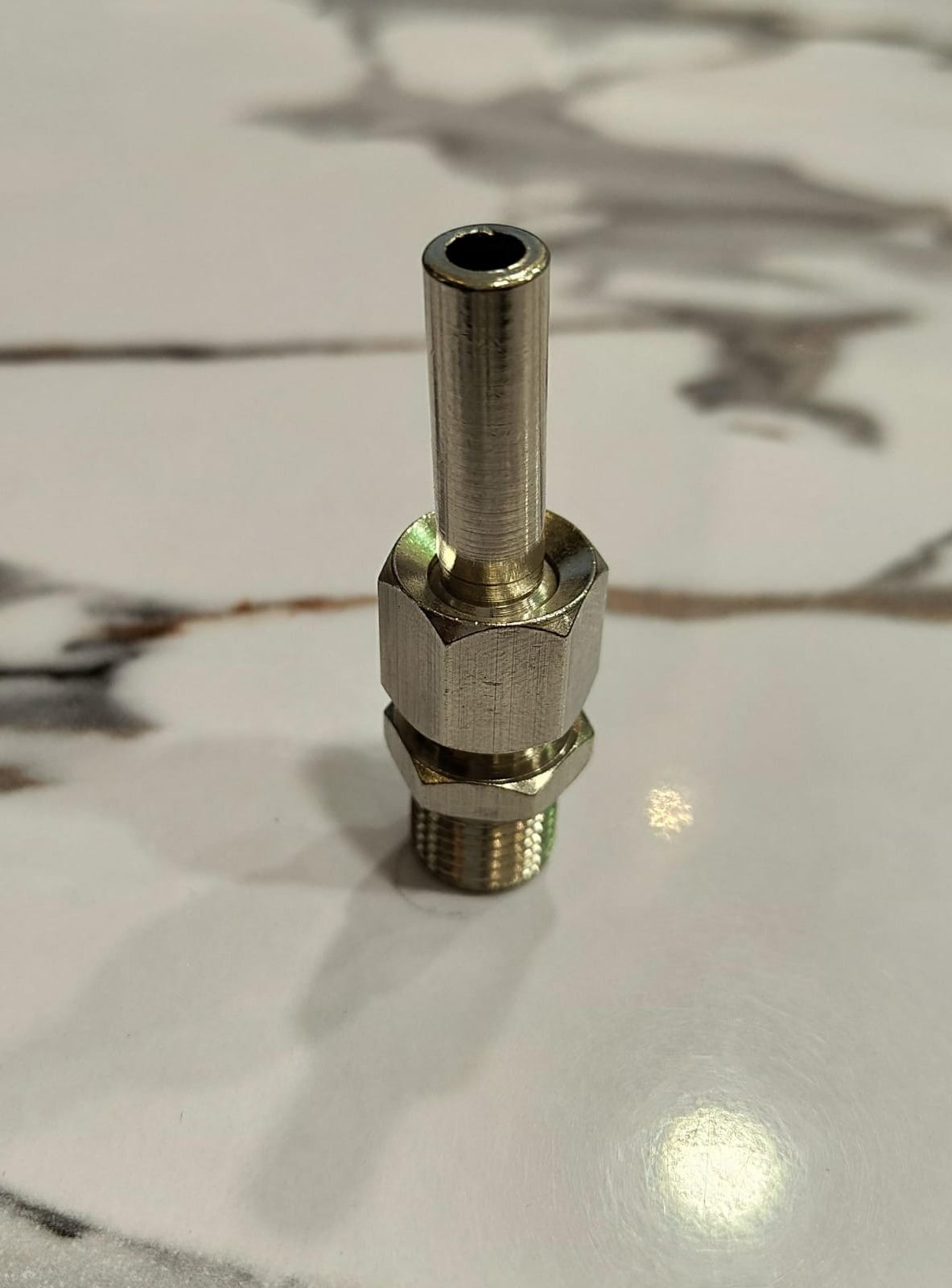

In the technical arsenal of fountain components, few items match the versatility and utility of the adjustable angle nozzle. The precision-machined 1/4" BSP component shown here represents fundamental building block technology that enables countless fountain configurations across residential, commercial, and public installations. At Ekjan Associates, we recognize these unassuming components as essential tools that transform rigid fountain designs into adaptable, optimized water displays.
Engineering Simplicity, Functional Complexity
The adjustable angle nozzle achieves remarkable functionality through deceptively simple mechanical design. The component comprises three primary elements: a threaded base fitting (1/4" BSP male in this case) that connects to supply plumbing, a swivel joint that enables angle adjustment, and a cylindrical nozzle body with precision-machined orifice.
The swivel mechanism allows the nozzle body to pivot through approximately 30-40 degrees from vertical axis, enabling directional control of the water stream. The hex wrench flats visible on the swivel body facilitate secure tightening once optimal angle is achieved, preventing drift during operation while allowing field adjustment when needed.
Technical Advantages
Hydraulic Flexibility: Unlike fixed-angle nozzles that produce predetermined spray patterns, adjustable nozzles allow on-site optimization. Compensate for installation variations, pressure fluctuations, or wind conditions through simple angle adjustment rather than component replacement.
Pattern Precision: Multi-nozzle installations require precise stream intersection for crown, tier, and bouquet effects. Adjustable nozzles enable the fine-tuning necessary to achieve these complex patterns despite inevitable installation tolerances and hydraulic variations.
Maintenance Compensation: Mineral deposits, wear, or slight pressure changes affect stream trajectory over time. Adjustable nozzles allow periodic recalibration without disassembly or replacement, extending installation lifespan while maintaining visual consistency.
Cost Efficiency: One adjustable nozzle type replaces inventory of multiple fixed-angle variants, reducing component costs and simplifying procurement. Field adjustability eliminates the trial-and-error of selecting correct fixed angles during installation planning.
Material and Construction
The brass construction provides essential corrosion resistance for continuous water exposure while the precision machining ensures smooth adjustment and reliable angle retention. The internal orifice diameter—typically 2-4mm depending on application—is accurately sized to produce desired flow characteristics at specified operating pressure.
The threaded connection (1/4" BSP in this model, though other sizes available) provides secure, leak-free mounting to manifolds, risers, or direct plumbing connections. The compact profile minimizes visual intrusion while the robust construction withstands installation handling and operational stresses.
Common Applications
These versatile components appear throughout fountain installations: multi-tier configurations where precise angle control creates layered water displays, crown patterns requiring exact stream convergence, custom designs demanding site-specific optimization, retrofit projects adapting to existing infrastructure, and temporary installations benefiting from quick adjustment capability.
Installation Best Practices
Successful deployment requires initial rough positioning followed by system pressurization and incremental adjustment under operating conditions. Tighten adjustment mechanisms firmly but not excessively—brass threads require care to prevent damage. Document final angles for future reference during maintenance.
Ekjan Associates stocks comprehensive ranges of adjustable angle nozzles—the foundation of adaptable fountain engineering.
