Fan Jet Fountain Nozzles: Creating Spectacular Semicircular Water Displays

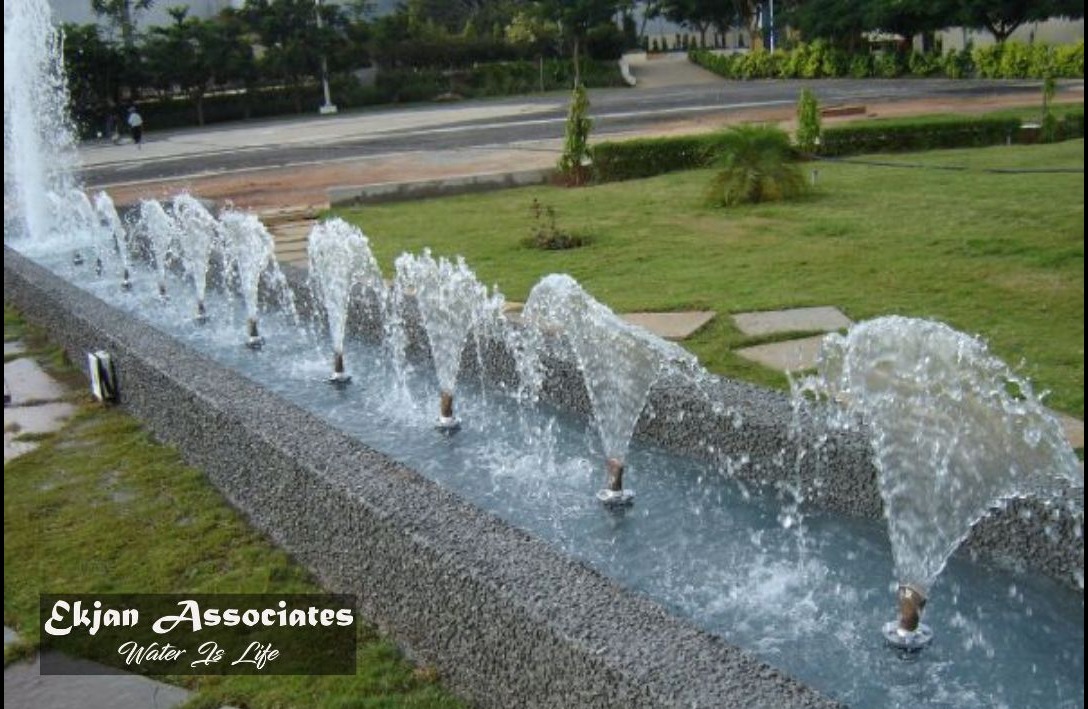

The stunning public fountain installation shown here demonstrates the dramatic impact of fan jet nozzles—specialized fountain components creating distinctive semicircular or fan-shaped water patterns. The sequential arrangement of these jets along the linear basin creates rhythmic progression of graceful water arcs, each jet producing its signature fan pattern that captivates viewers through elegant geometry and impressive height.
At Ekjan Associates, we stock professional-grade fan jet nozzles in 1" and 1.5" configurations, available in both stainless steel 316 and bronze casting—premium materials ensuring decades of reliable performance in demanding public and commercial installations.
The Fan Jet Effect Explained
Fan jet nozzles create their distinctive semicircular spray patterns through precision-engineered internal deflector plates. Pressurized water enters through the threaded base connection and encounters carefully contoured surfaces that redirect the flow outward in uniform 180-degree arc. The result—visible in the installation shown—is a graceful fan of water rising and falling in perfect semicircular form.
Unlike umbrella jets producing complete 360-degree patterns, fan jets direct water in single-sided display ideal for linear fountains, pool edges, and installations where water projection in specific direction proves advantageous.
Size Options for Varied Applications
1" Fan Jets: Moderate-scale displays suitable for residential pool features, garden fountains, smaller commercial installations, and accent elements in larger fountain compositions.
1.5" Fan Jets: Substantial public installations like the one shown requiring impressive height and volume, large commercial fountains, municipal plaza features, and architectural water elements demanding presence.
The progression of sizes ensures appropriate capacity matching specific design requirements and hydraulic capabilities.
Material Excellence: SS316 vs Bronze
Stainless Steel 316 (Marine Grade): The ultimate in corrosion resistance, ideal for saltwater applications, coastal installations, chlorinated pools, and installations prioritizing maintenance minimization. The polished finish provides contemporary aesthetic while the material withstands the harshest environments indefinitely.
Bronze Casting: Traditional material developing natural patina adding character over time. Bronze offers excellent machinability for complex internal geometry, warm aesthetic appealing to classical design sensibilities, and proven longevity in fountain applications spanning centuries.
Both materials deliver professional-grade performance—selection depends on aesthetic preferences, environmental conditions, and design context.
Installation Applications
Linear Fountains: As demonstrated in the image, sequential fan jets along channels or edges create impressive processions of coordinated water displays.
Pool Edges: Fan jets mounted to pool coping project graceful arcs over water surfaces creating elegant recreational water features.
Architectural Elements: Building-integrated water features utilize fan jets' directional spray patterns creating wall-parallel water curtains.
Garden Features: Residential installations incorporate fan jets as focal point elements in formal water gardens.
Hydraulic Requirements
Fan jets demand adequate pressure for proper pattern formation—typically 2-3 bar depending on nozzle size and desired height. Insufficient pressure produces weak, poorly formed fans; excessive pressure creates turbulent spray rather than graceful arcs.
Proper manifold design ensures equal pressure distribution to multiple nozzles—critical for the uniform appearance visible in sequential installations like the one shown.
Visual Impact and Public Appeal
The installation photograph demonstrates fan jets' ability to create genuine spectacle. The multiple coordinated displays—each contributing individual fan pattern while collectively creating unified composition—prove irresistibly photogenic. These installations become beloved landmarks generating community pride and tourist interest justifying municipal investment.
Professional Installation Considerations
Successful fan jet installations require precise nozzle alignment ensuring fans project in intended directions, level mounting maintaining symmetrical spray patterns, appropriate basin sizing capturing entire spray pattern despite wind drift, and quality filtration maintaining water clarity essential for visual appeal.
At Ekjan Associates, we provide technical guidance ensuring fan jet installations achieve their spectacular potential through proper specification and execution.
The Quality Difference
Professional fan jet nozzles feature precision-machined internal passages creating uniform spray patterns, robust construction withstanding continuous operation and environmental exposure, quality materials resisting corrosion despite demanding conditions, and threaded connections ensuring leak-free installation.
Cheap alternatives compromise on manufacturing precision, material quality, and design refinement—resulting in inconsistent patterns, rapid deterioration, and disappointing performance.
Complete System Solutions
Beyond nozzles themselves, we provide appropriate pump selection and sizing, manifold design for multiple nozzle installations, mounting hardware and risers, and installation consultation ensuring optimal results.
Fan jet fountain nozzles from Ekjan Associates—precision-engineered SS316 and bronze components creating the graceful semicircular displays that define memorable public water features.
Contact: +91 6361716178 | www.ekjanassociates.in
