Foam Jet Fountain Nozzles: Technical Excellence in Aerated Water Display
The Oase Schaumsprudler foam jet nozzle represents precision German engineering designed to create spectacular white, foamy water columns that define modern fountain displays. This technical examination of foam jet design reveals how sophisticated internal engineering transforms simple water pressure into the distinctive aerated columns visible in the dramatic public fountain installation shown.
Internal Engineering Principles

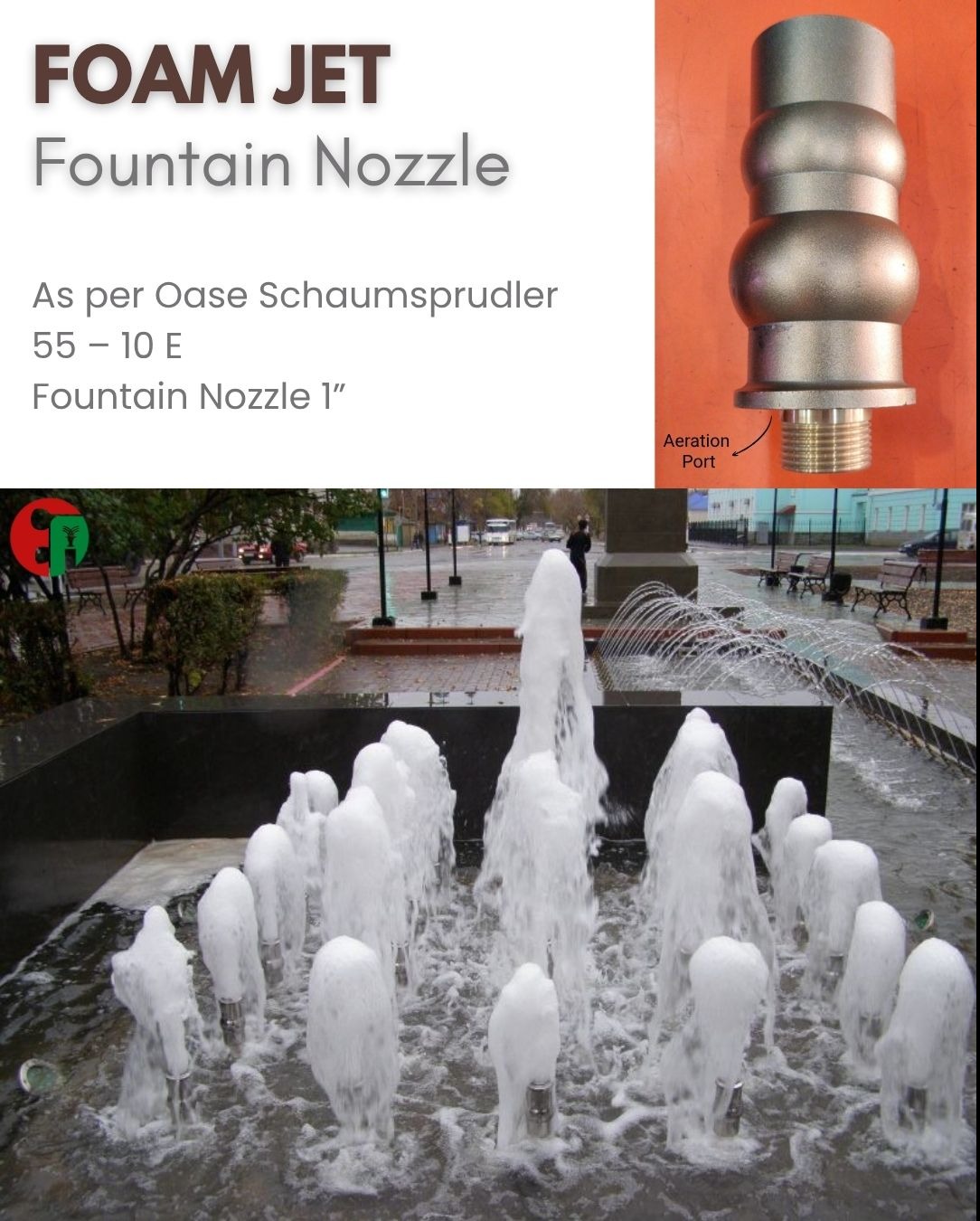

Foam jet nozzles achieve their characteristic white, textured appearance through aggressive internal air mixing. The cutaway view reveals the critical aeration port—a precisely positioned opening allowing atmospheric air to enter the nozzle body. As pressurized water flows through the nozzle, it creates negative pressure (Venturi effect) at the aeration port, drawing air into the water stream.
The internal mixing chamber features carefully designed baffles and turbulence-inducing geometry that thoroughly blend air and water. This violent mixing creates thousands of microscopic air bubbles throughout the water volume, producing the opaque white appearance and textured surface characteristic of foam jets.
The Oase Schaumsprudler 55-10E Specification
This professional-grade 1" fountain nozzle represents Oase's proven design optimized for public fountain applications. The substantial threaded base connection (1" BSP male threading) provides secure mounting to manifolds or risers while accommodating the significant flow volumes foam jets require.
The multi-tiered body design visible—alternating wider and narrower sections—serves functional purposes beyond aesthetics. These variations create the pressure differentials and flow characteristics necessary for optimal air entrainment and mixing.
Operating Requirements
Foam jets demand specific hydraulic conditions for proper performance:
Pressure: Typically 2.5-4 bar for optimal foam formation. Insufficient pressure produces weak, poorly aerated streams; excessive pressure creates turbulent spray rather than cohesive columns.
Flow Rate: The 1" Schaumsprudler likely requires 40-80 liters per minute depending on desired height and foam density.
Water Quality: Clean water proves essential—suspended particles or algae disrupt foam formation and clog aeration ports.
The Dramatic Display Effect
The installation photograph demonstrates foam jets' spectacular impact. The multiple white columns of varying heights create dynamic composition commanding attention across the plaza. The opaque, textured water columns provide maximum visibility against varied backgrounds—whether clear sky, buildings, or landscape.
The foam texture catches and diffuses light beautifully, creating the luminous quality visible even in overcast conditions shown. Under evening illumination, foam jets become particularly spectacular as countless air bubbles scatter light creating glowing columns.
Material and Construction
Professional foam jet nozzles like the Oase Schaumsprudler utilize corrosion-resistant materials essential for longevity:
Body: Typically brass, bronze, or stainless steel providing durability and precision machining capability.
Aeration Components: Engineered plastics or corrosion-resistant metals maintaining precise air intake despite continuous water exposure.
Threaded Connections: Quality threads ensuring leak-free installation and allowing removal for maintenance without damage.
Application Advantages
Foam jets excel in public fountain applications for several reasons:
High Visibility: The white, opaque columns read clearly from distance, ensuring fountains command attention.
Reduced Splash: The aerated water proves lighter than solid streams, reducing splash radius and keeping surrounding areas drier.
Impressive Height: Foam jets achieve substantial height relative to water consumption—the air content reduces effective density allowing greater projection.
Acoustic Character: The textured surface creates distinctive sound different from smooth water jets—recognizable "foaming" character.
Installation Considerations
Successful foam jet installations require adequate basin sizing capturing the entire spray pattern including wind drift, proper manifold design ensuring equal pressure to multiple nozzles, secure mounting preventing movement under water thrust, and appropriate pump selection delivering required pressure and flow.
Maintenance Requirements
Professional foam jet nozzles demand periodic attention: regular inspection of aeration ports for blockages, cleaning of internal passages removing mineral deposits, verification of mounting security, and seasonal winterization in freezing climates.
The precision internal geometry means mineral buildup significantly affects performance—routine maintenance proves essential for sustained optimal operation.
Foam jet nozzles represent fountain engineering sophistication—where controlled air entrainment creates the spectacular white columns defining contemporary public water features.
