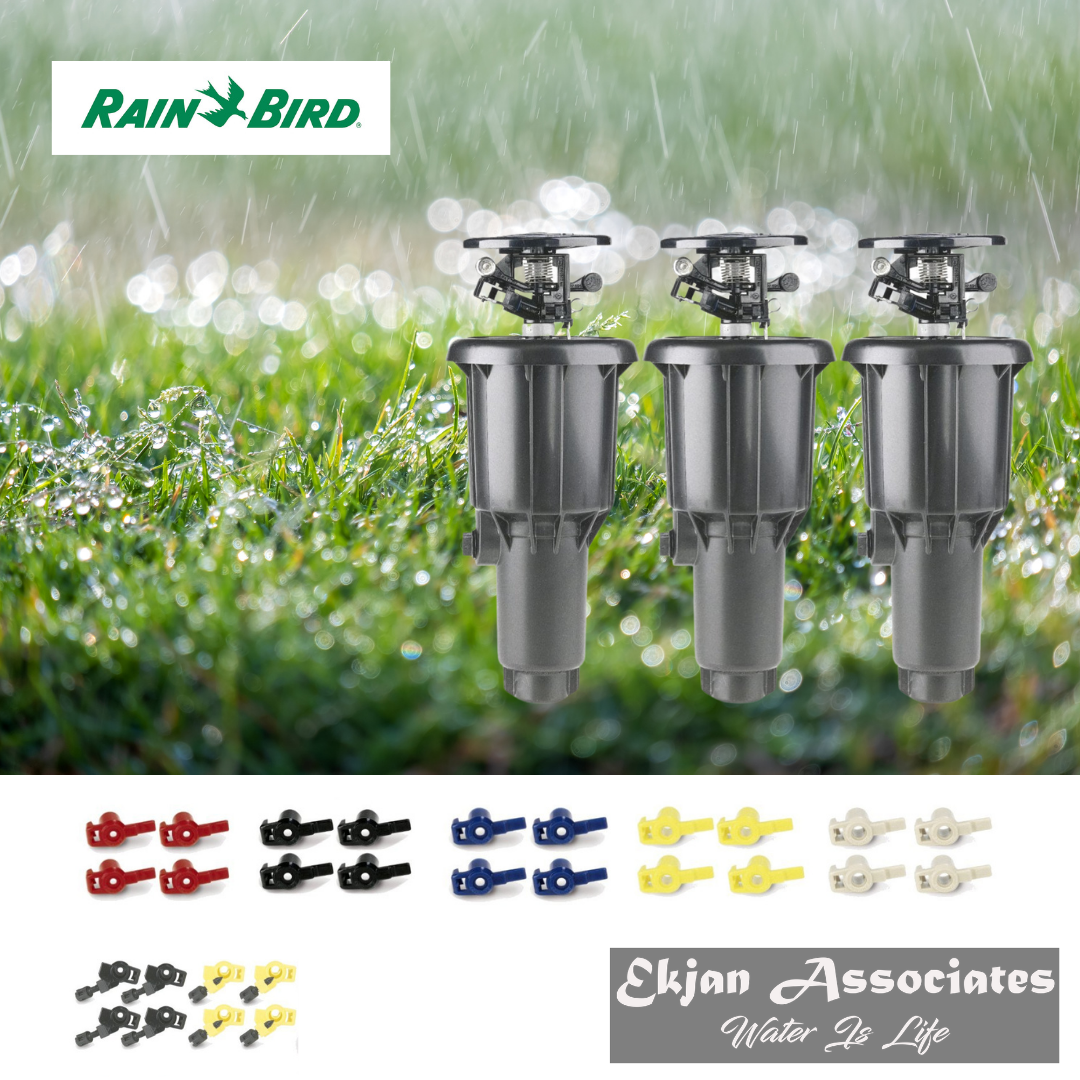

2045A Maxi-Paw - Rain Bird Sprinkler Pop-Up Impact Sprinklers for Dirty Water Applications - Spacing Up to 45 Feet (13.7 m) The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications. The optional Seal-A-Matic™ prevents run-off, puddling, and erosion caused by low head drainage. And most important, it's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal. Features *Proven impact drive with straight-through flow for superior *performance in dirty water *Five standard trajectory and two low angle (LA) color-coded nozzles for matched precipitation and in a wide range of applications *360° full-circle OR arc adjustable from 20° to 340° *Side and combination ½” or ¾” bottom inlet for design flexibility (Maxi-Paw) *3 year warranty Specs Precipitation Rate: 0.28 to 1.21 inches per hour (7 to 31 mm/h) Radius: 22 to 45 feet (6, 7 to 13, 7 m) Radius with Radius Reduction Screw: 18 ft (5, 4 m) Pressure: 25 to 60 psi (1, 7 to 4, 1 Bars) Flow: 1.5 to 8.4 GPM (0, 34 to 1, 91 m3/h; 0, 9 to 0, 53 l/s) Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet 1/2" (15/21) FPT side inlet Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles LA nozzle outlet trajectory is 11° Available Nozzles: Standard trajectory 06, 07, 08, 10, 12 Low Angle 07LA, 10LA Dimensions Overall height: 9 3/10" (23, 6 cm) Pop-up height: 3" (7, 6 cm) Exposed surface diameter: 5" (12, 7 cm)
